Product Description

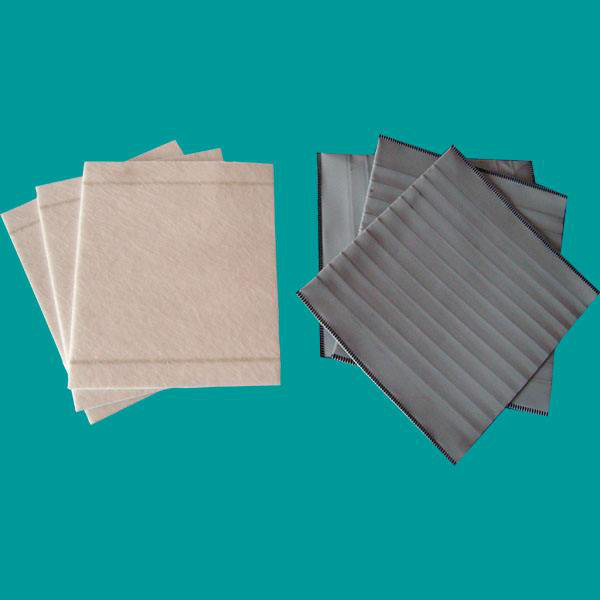

LEEMAT Fiber Glass Separator Mat/Tissue (B-BT Series) can be used as substrate for lead-acid battery separator plate.
It is characterized by smooth surface, uniform thickness, low DC mass resistivity, high absorption capacity, and good acid resistance, low content of deoxidized KMnO4 organic substance and impurity as well as proper stiff ness.
Main Features
Smooth surface, uniform thickness;
Good fl uid absorption ability, good acid resistance, moderate stiff ness;
Low potassium permanganate restore and impurity content.
Technical Specification
|
Production Code |
Nominal Thickness（mm） |
Binder Content（%） |
Longitudinal Breaking Tensile（N/50mm） | Content of Potassium Permanganate Reduzate（ml/g） |
Impregnation Time （s） |
15minAcid Resistance（%） |
| B-BT 0.3 | 0.3±0.03 | ≤20 | ≥70 | ≤15 | ≤100 | ≤1.0 |
| B-BT 0.4 | 0.4±0.03 | ≤20 | ≥90 | ≤15 | ≤25 | ≤1.0 |
| B-BT 0.5 | 0.5±0.04 | ≤20 | ≥110 | ≤15 | ≤10 | ≤1.0 |
| B-BT 0.6 | 0.6±0.04 | ≤20 | ≥140 | ≤15 | ≤10 | ≤1.0 |
| B-BT 0.7 | 0.7±0.04 | ≤20 | ≥160 | ≤15 | ≤10 | ≤1.0 |
| B-BT 0.8 | 0.8±0.05 | ≤20 | ≥180 | ≤15 | ≤10 | ≤1.0 |
| B-BT 0.9 | 0.9±0.05 | ≤20 | ≥200 | ≤15 | ≤10 | ≤1.0 |
